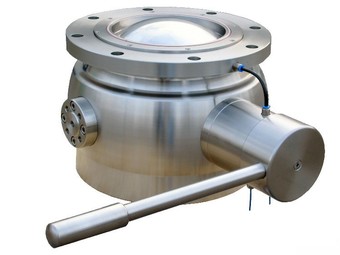

AGP spherical segment valves: the best choice for tanks and silos

The AGP spherical segment valve offers an effective solution to common problems such as bridging, product blockages, cross-contamination, and seat leakage. Thanks to its innovative design with an inflatable seal, this valve guarantees 100% sealing, even in challenging applications involving vacuum, solvents, or very fine powders. Available in versions with static sealing, the valve is particularly well suited to abrasive products and applications where precision and cleanability are essential.

Features and benefits

Prevents bridging, product blockages, and cleaning issues
Inflatable seal for perfect sealing with toxic or abrasive substances
Minimal dead space for higher blending accuracy
90-degree rotation for full bore flow, even with poor-flowing products
Optimal for atmospheric conditions and critical discharge processes

Get in touch for advice on the best spherical segment valve for your application!

Variants

Bolsegment afsluiter

De bolsegment afsluiter is de best beschikbare afsluiter onder tanks en silo’s.

Features

Minimale dode ruimte tussen schroef en afsluiter

Hoge mengnauwkeurigheid

Optimale reinigingsmogelijkheden

Applications

Olie & gas

Tuinbouw

Looking for the right spherical segment valve for your process?

We’re happy to visit you for tailored advice, taking your requirements as well as sustainability, effectiveness, and safety into account. Book a no-obligation appointment now.

Request quote

Sjoerd Scholte

Do you have any questions about this product?

Your BÈTA specialist will be happy to advise you

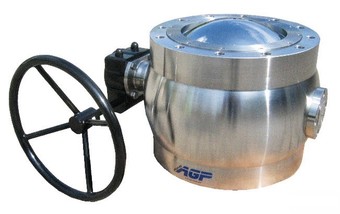

AGP spherical segment valve

At BÈTA industrie you have come to the right place when you are looking for spherical segment valves. We are the agent of the successful AGP spherical segment valves, this is the best available valve among tanks and silos. In addition, this spherical segment valve can prevent and solve many common problems:

Bridging and flow restriction
Product jamming
Cross contamination
Cleaning issues
Leakage through the seat and frequent maintenance
Dead space
Installation issues

Spherical segment valve with inflatable gasket

The spherical segment valve is equipped with an inflatable gasket, ideal for abrasive products and where 100% guaranteed sealing is crucial, for example with vacuum, solvents, toxic substances and very fine powders. The valve is also available in a version with a static seal.

Why a spherical segment valve?

A spherical segment valve is often used in atmospheric conditions and in situations where the total outflow of mixed materials becomes critical. Compared to standard valves, these valves ensure minimal dead space between screw and valve, resulting in higher mixing accuracy and optimal cleaning options. The spherical segment and a rotation possibility of 90 degrees ensure that even difficult-flowing products can pass the full passage of the valve in a short time. During rotation, the segment moves freely along the spherical housing. Watch a video about the operation of the spherical segment valve here!
